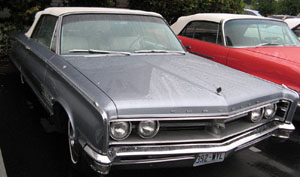

The 1966 300 Series received a facelift over the 1965 model. The front and rear styling was updated with a more sculpted look. The crossbar grille was deeply set in the facia. Wraparound taillights were unique to the 300 Series this year. Cast trim pieces inset into the front fenders continued into the front doors. The interior carried on with the 1965 style instrument panel but new thin-profile shell-type bucket seats were fitted. Standard engine was a 383 4-barrel engine with 325 horsepower and a new 365 horsepower 440 T.N.T engine became available.
300 SERIES I.D. NUMBERS:
Serial Numbers and Engine Numbers were located in the usual positions. 300 Serial Numbers had a prefix of 'CM'. CM23J66-100001 and up identify a 1966 Chrysler 300 two-dor hardtop with the 440 cubic inch engine built in Delaware.
300 SERIES ENGINES:
Standard V-8. Overhead valves. Cast iron block. Displacement: 383 cubic inches. Bore and stroke: 4.25 x 3.375 inches. Compression ratio: 10.1:1. Brake horsepower: 325 at 4800 R.P.M. Five main bearings. Hydraulic valve lifters. Carburetor: Carter Type AFB four-barrel Model 4130S.
Optional V-8. Overhead valves. Cast iron block. Displacement: 440 cubic inches. Bore and stroke: 4.326 x 3.75 inches. Compression ratio: 10.0:1. Brake horsepower: 365 at 4600 R.P.M. Five main bearings. Hydraulic valve lifters. Carburetor: Carter Type AFB four-barrel Model 4136S.
At A Glance
| Year |
Body/Style Number |
Body Type/Seating |
Model No. |
Price |
Wt Lbs |
Production |
| 1966 |
CM23 |
2-Dr Ht Cpe - 5P |
BC2-M |
$4005 |
3940 |
24,103 |
| 1966 |
CM43 |
4-Dr Ht Sedan - 5P |
BC2-M |
$4081 |
4000 |
20,642 |
| 1966 |
CM27 |
2-Dr Conv Cpe - 5P |
BC2-M |
$4358 |
4015 |
2,500 |
| 1966 |
CM41 |
4-Dr Sedan - 6P |
BC2-M |
NA |
NA |
2,353 |
